DIN2391 St35 BK Bright Drawn Hard Seamless Steel Tube

Basisinformatie

Plaats van herkomst:	China
Merknaam:	New Era
Certificering:	ISO9001,TS16949
Modelnummer:	DIN2391

Min. bestelaantal:	1 ton
Prijs:	Onderhandelbaar
Verpakking Details:	Bundelspakket, houten kistpakket
Levertijd:	45 dagen
Betalingscondities:	T/T
Levering vermogen:	3000 Ton/Maand

Beste prijs Contact nu

Productnaam:	Precisie Stalen Buis	Leveringstoestand:	BK,BKW,BKS,GBK,NBK
OD -maat:	6156mm	WT -maat:	1-30 mm
Standaard:	DIN2391 ST52 BK	Sollicitatie:	mechanisch doel, structurele buizen
Stalen materiaal:	St35, St45, St52	Levertijd:	45 dagen
Markeren:	DIN2391 St35 seamless steel tube , bright drawn hard steel tube , precision seamless steel tube

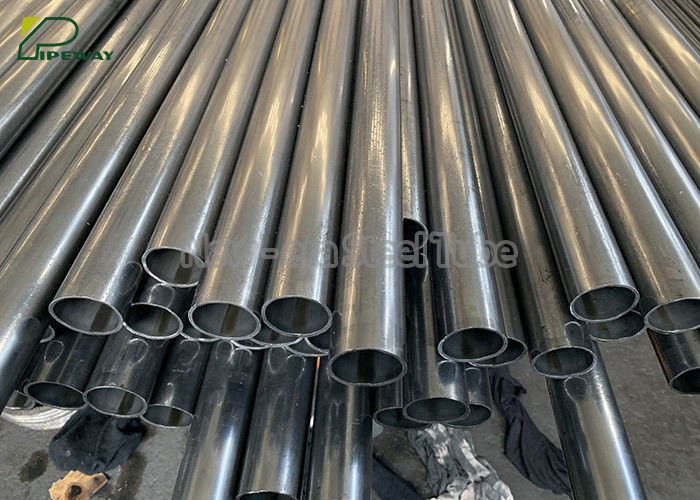

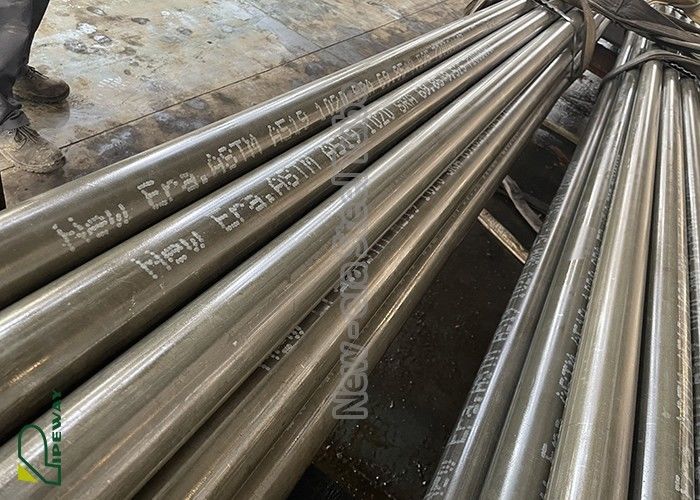

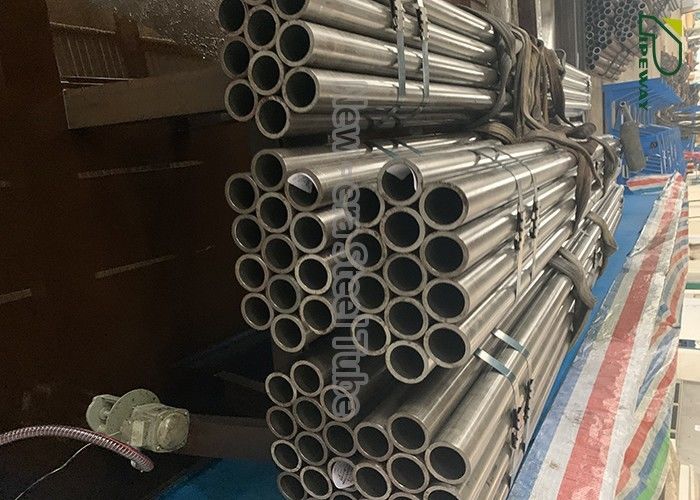

DIN2391 St35 BK Bright Drawn Hard Seamless Steel Tube

Material: ST35, ST45, ST52
Size Range: OD: 6-156mm, WT: 1-30mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: BK, BKW, BKS, GBK, NBK
Application: For high precision purpose, auto industry, like manipulator, Shock Absorber, Transmission Shaft, Steering Gear, Car Frame, etc.

Cold drawning on the seamless steel tubes, to reach high accuracy on the OD and WT tolerance

Deliver condition:

1). BK Cold finished (hard)
2). BKW Cold finished (soft)

3). BKS Cold finished and stress relieved

4). GBK Annealed
5). NBK Normalized

100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.

Product Name	DIN2391 St35 BK Seamless Carbon Steel Tube Hard Drawn
Material	ST35, St45, ST52
Delivery Condition	BK, BKW, BKS, GBK, NBK
Standard	DIN2391
Size Range	OD: 6-88mm, WT: 1-15mm
Application	High precision purpose, auto parts, oil cylinder, etc
Round Billet	Bao Steel, Xingcheng Steel, Huai Steel, Zhongtian Steel
Keyword	DIN2391 Steel Tube
Certificate	TS16949, ISO 9001
HS code	7304319000
Delivery Time	45 days
Packing	Bundles or Wooden Boxes

Steel Grade		Chemical Composition
Symbol	Material Number	C Max.	Si Max.	Mn	P Max.	S Max.
ST35	1.0308	0.17	0.35	≥0.40	0.025	0.025
ST45	1.0408	0.21	0.35	≥0.40	0.025	0.025
ST52	1.0580	0.22	0.55	≤1.60	0.025	0.025

Steel Grade		BK		BKW		BKS
Name	No.	Rm Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
ST35	1.0308	480	6	420	10	420	315	14
ST45	1.0408	580	5	520	8	520	375	12
ST52	1.0580	640	4	580	7	580	450	10

Steel Grade		GBK		NBK
Name	No.	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
ST35	1.0308	315	25	340--470	235	25
ST45	1.0408	390	21	440--570	255	21
ST52	1.0580	450	22	490--630	355	22
